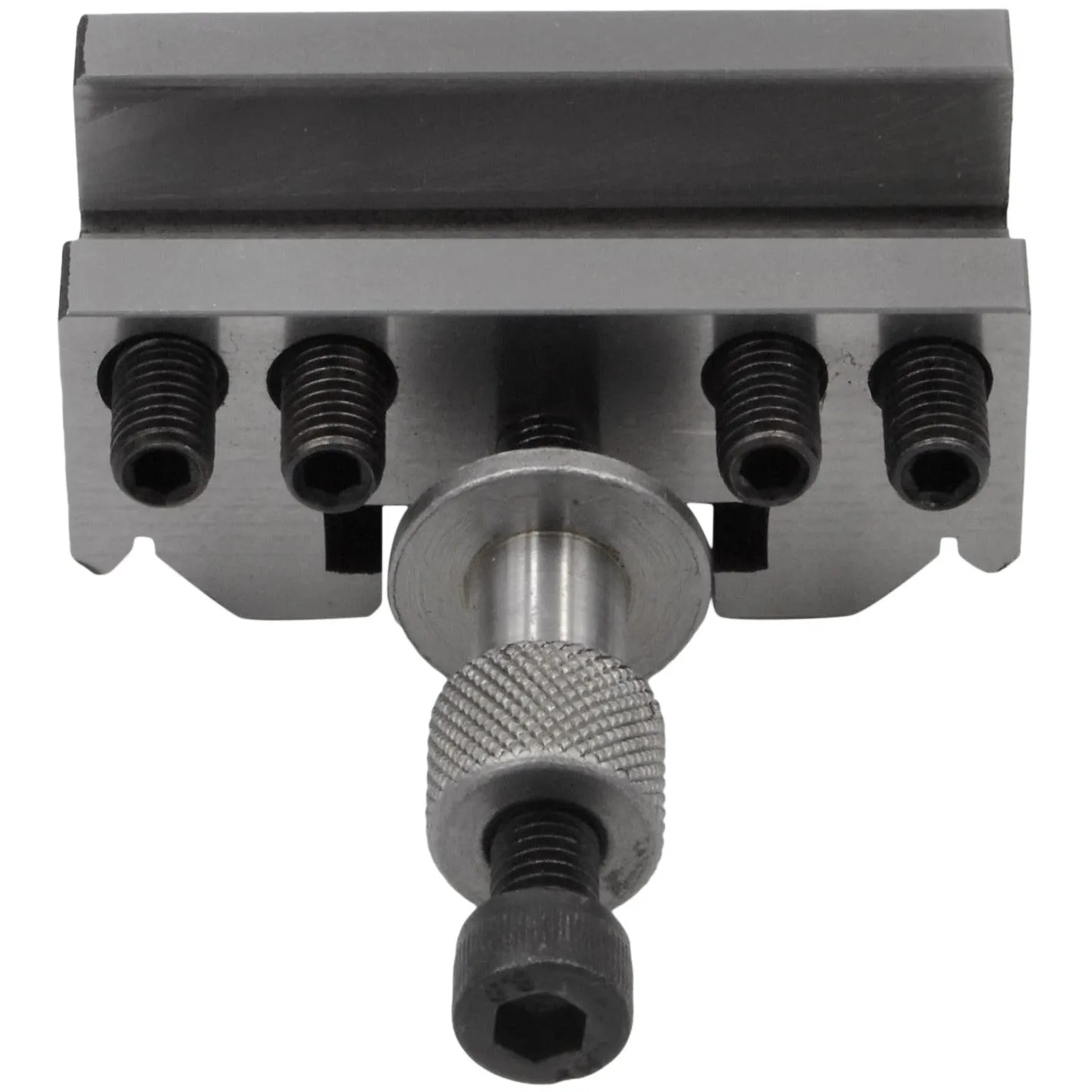

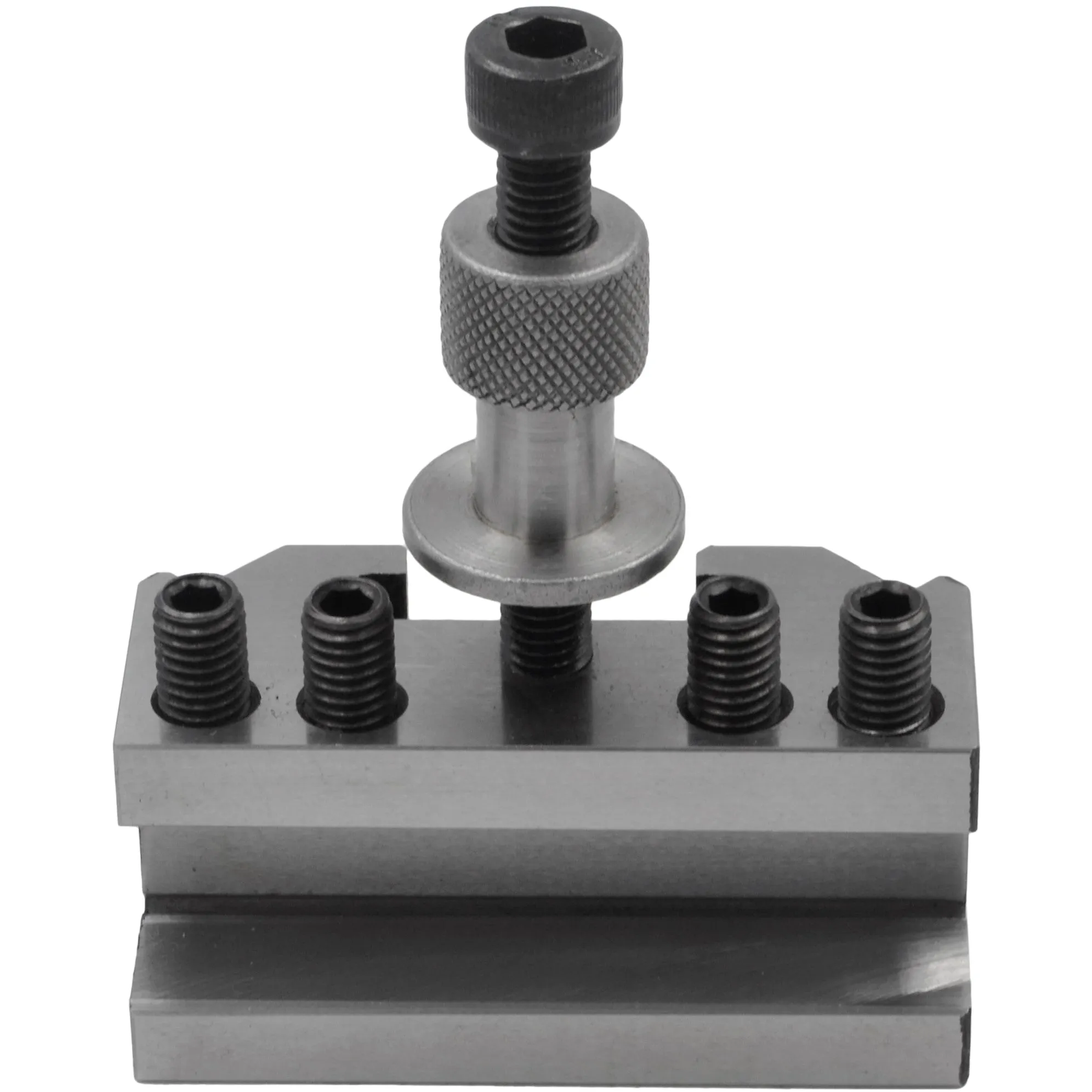

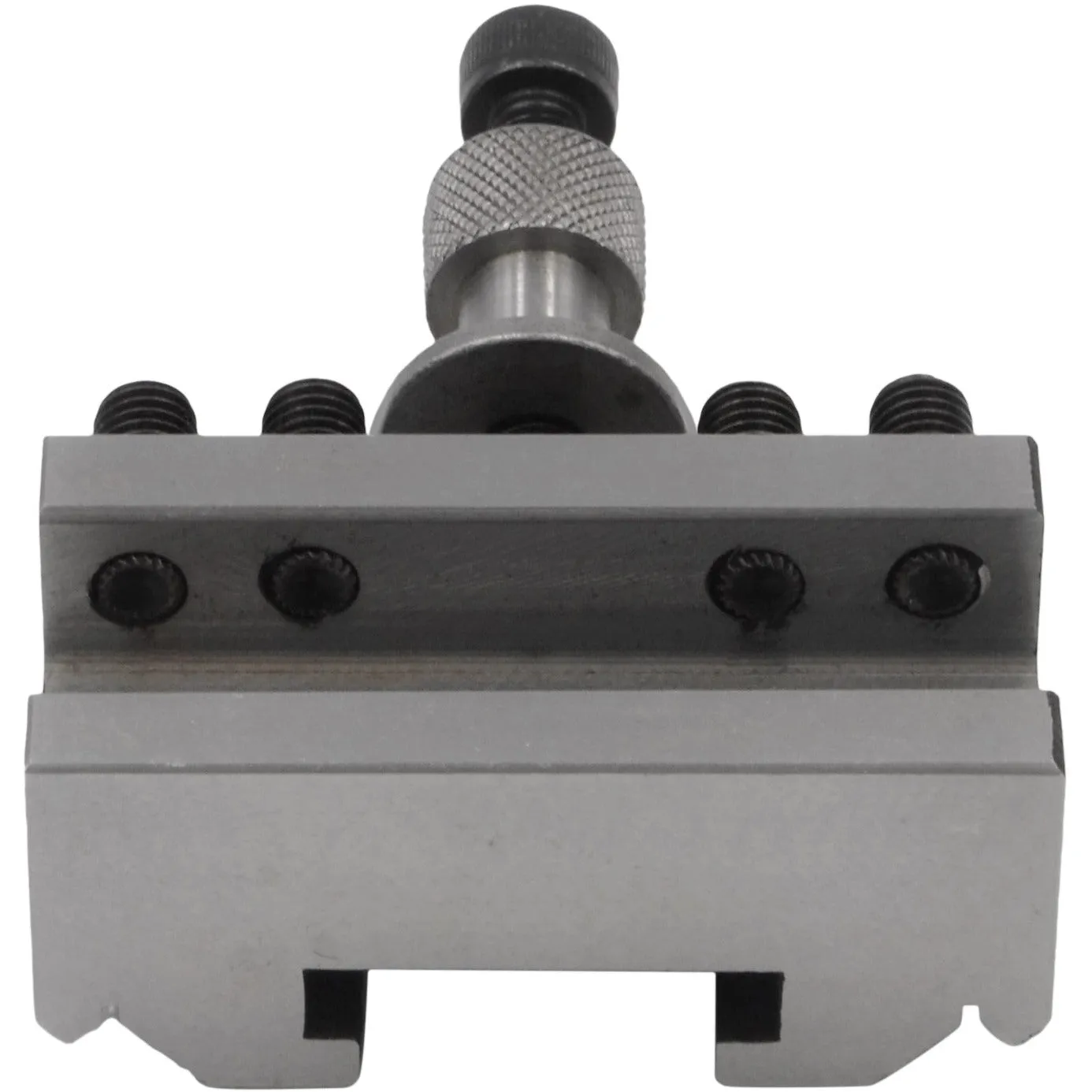

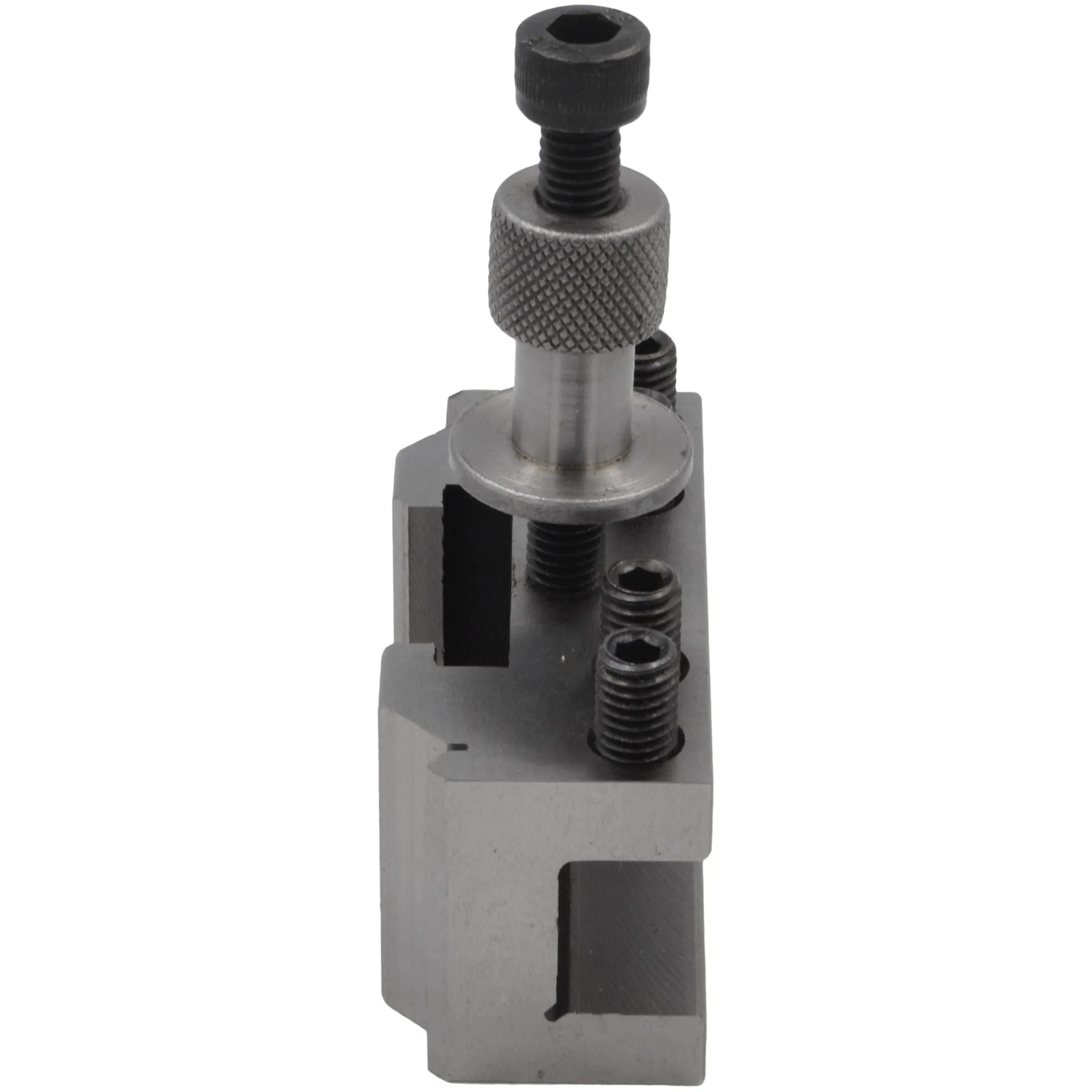

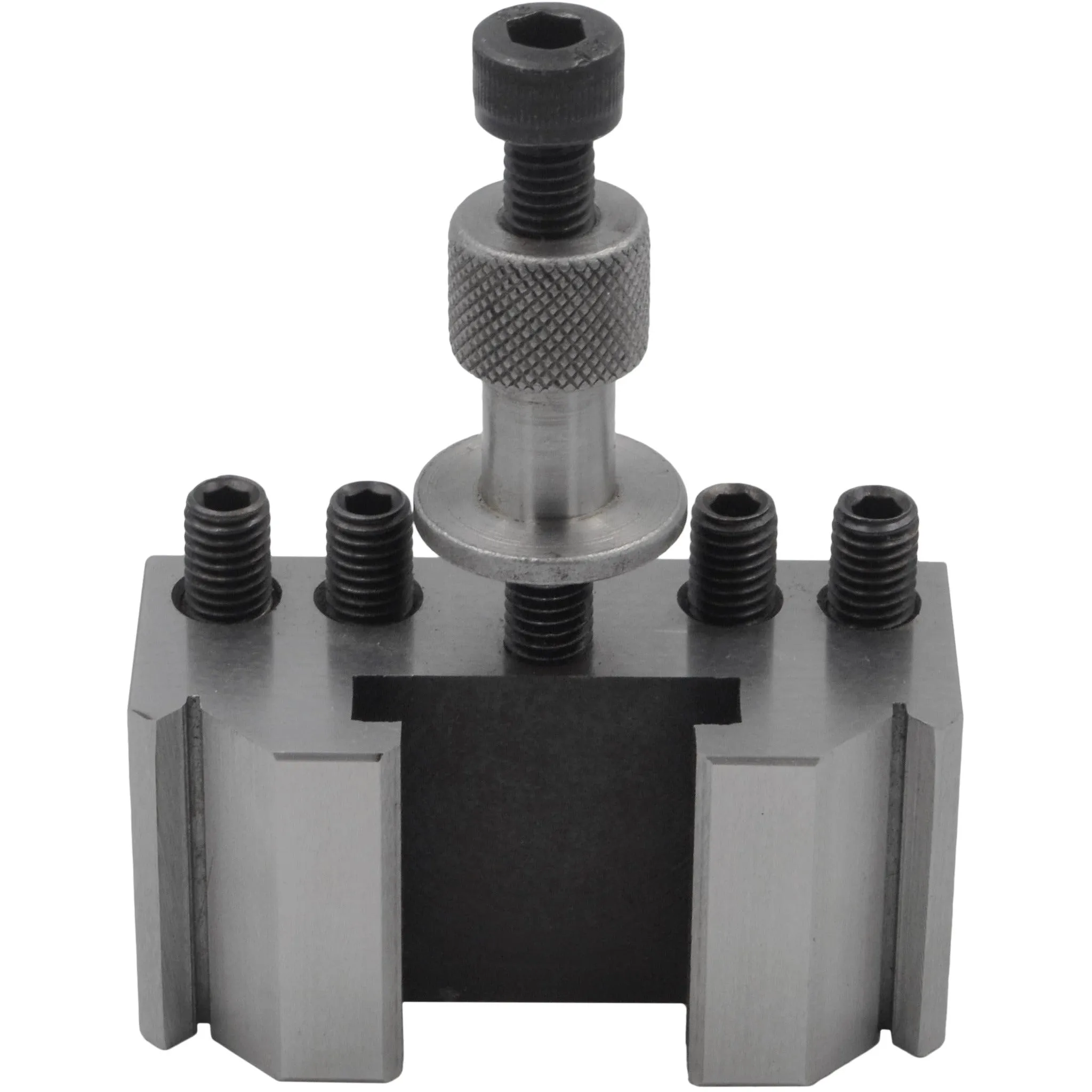

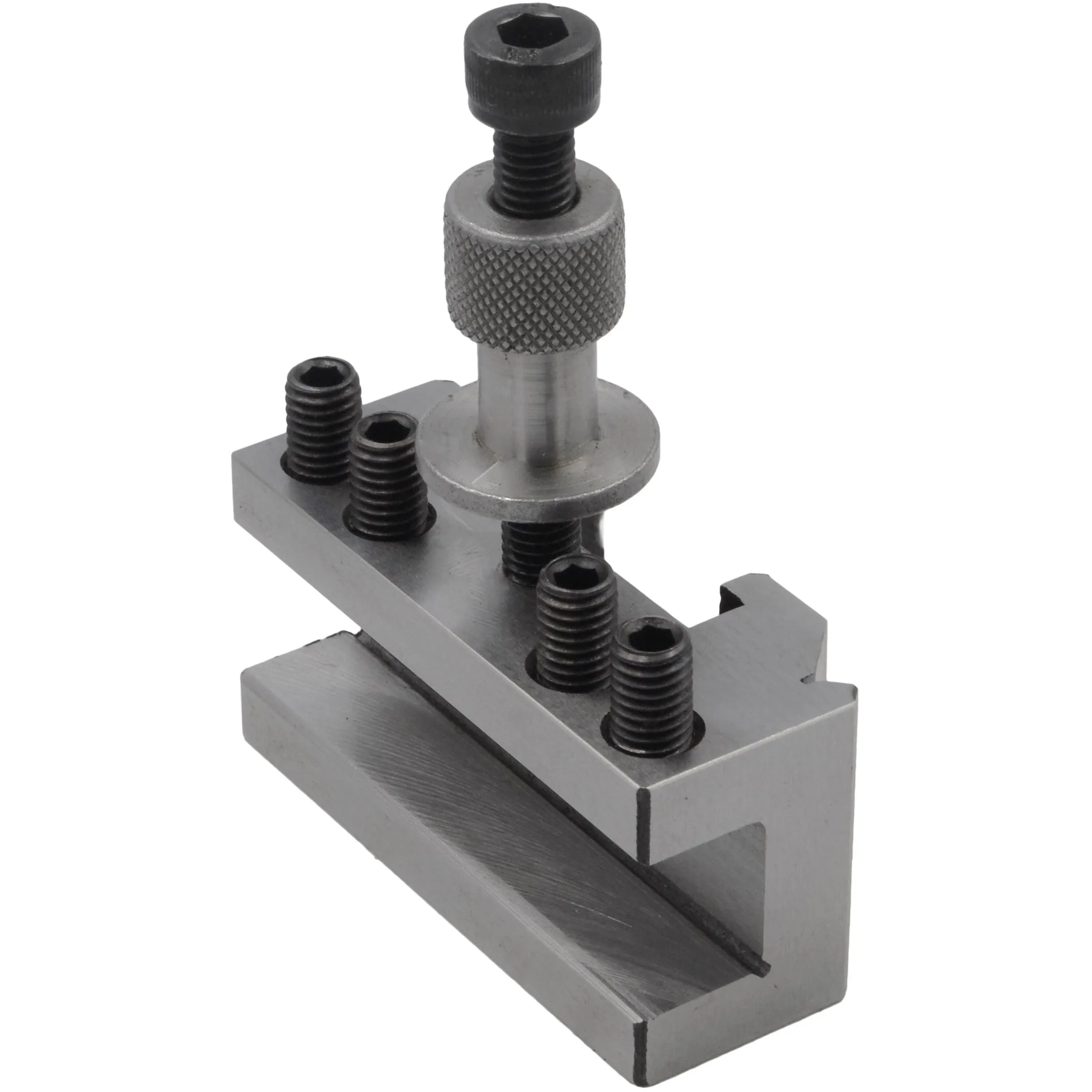

T51 for Boxford Lathes
Suitable for 5" - 6" (125-150 mm) lathes

Specifications

• Hardened and Ground Standard Tool Holder -5/8" (16 mm) capacity
• Quick change tool post, loose standard holders T51

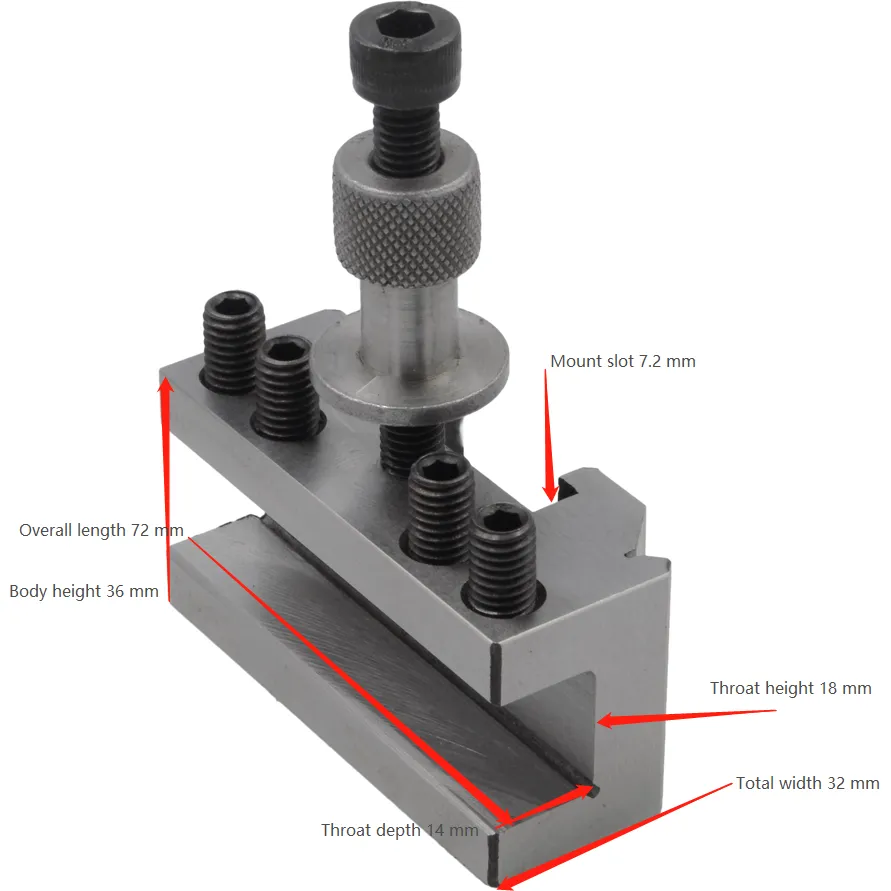

• Tool slot or throat 18 mm height x 14 mm depth.

• Overall Length: 72 mm
• Total width: 32 mm
• Body height 36 mm

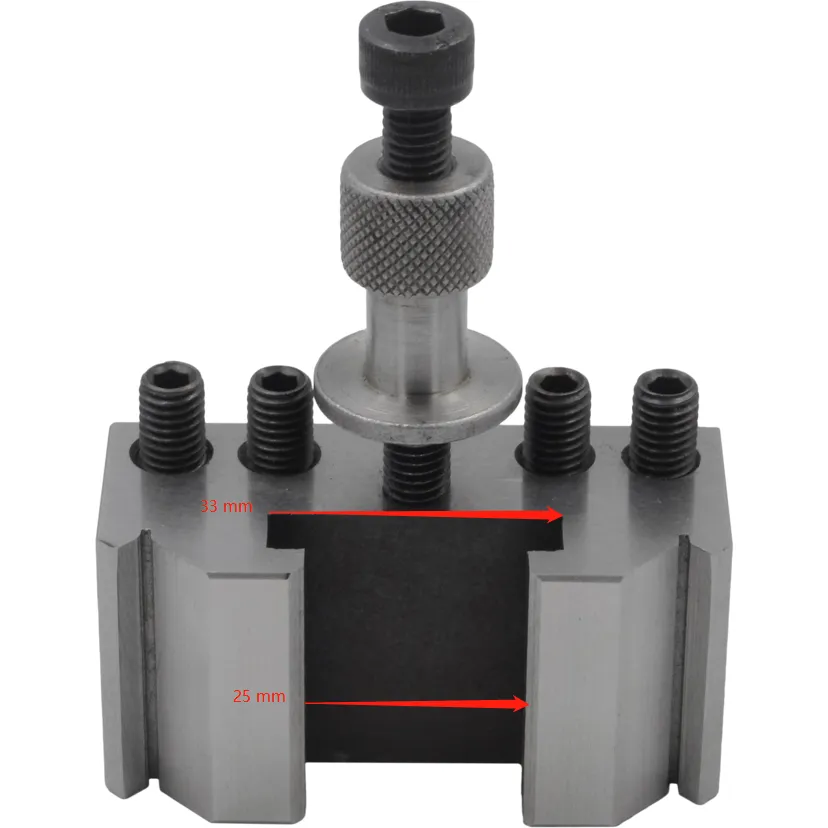

• Mount slot 33 mm x 7.2 mm
• Overall Weight: 0.420 kg
